Physical Dimensions |
||||
|
Component |

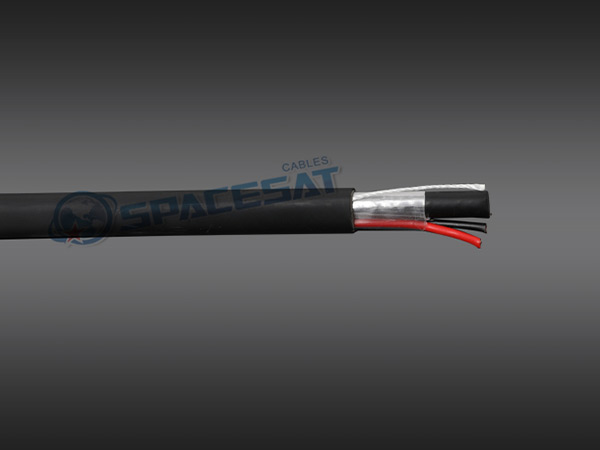

R659+Power |
|||
|
Conductor |
Material |
CCS/BC |
||
|
Dia. (mm) |
0.80±0.01 |
|||
|
Dielectric |
Material |
Foam PE |
||
|
Dia. (mm) |
3.70±0.10 |
|||
|
Shielding |
Material |
BC/CCA Braid |
||
|
Coverage |
95% |
|||
|
Jacket |
Material |
PVC |
||
|
Dia. (mm) |
6.0 ± 0.10 |
|||
|
Power Pair |
Material |
BC |
||
|
Dia. (mm) |
16/24x0.2 |
|||
|
Electrical Characteristics |
|||
|
Impedance(Ω) |
75±3 |
||
|
Velocity of Propagation |
83% |
||
|
Capacitance(pF/m) |
53.4 |
||
|
Nominal Attenuation [@ 68° F. (20° C)] |
|||
|
Frequency(MHz) |
Attenuation (dB/100m) |
||
|
10 |
2.95 |
||
|
50 |
6.23 |
||
|
100 |
8.53 |
||
|
200 |
12.1 |
||
|
400 |
17.5 |
||
|
700 |
24.0 |
||
|
900 |
27.3 |
||
|
1000 |
29.0 |
||
