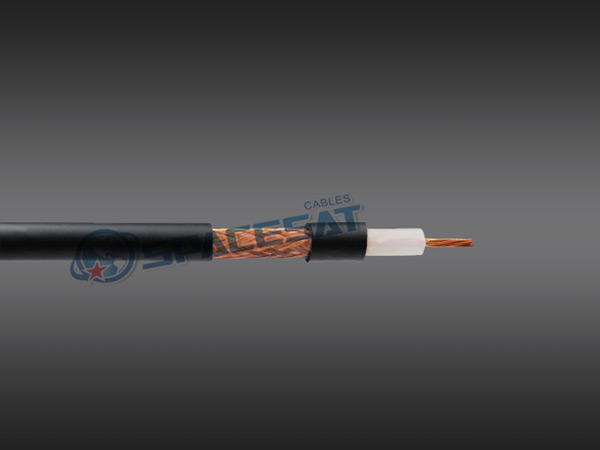

Physical Dimensions |
||
|
Component |
Standard Shield |
|
|
Conductor |
Material |
BC |
|
Dia.(mm) |
13AWG(7*0.75) |
|
|
Dielectric |
Material |
PE |
|
Dia.(mm) |
7.24±0.01 |
|
|
Shield |
Material |
BC BRADING |
|
Coverage |
96% |
|
|
Jacket |
Material |
PVC/PE |
|
Dia.(mm) |
10.3±0.01 |
|
|
Electrical Characteristics |
||
|
Impedance(Ω) |
50±3 |
|
|
Velocity of Propagation |
66% |
|
|
Capacitance(pF/m) |
100 |
|
|
Structural Return Loss(≥dB) |
20 |
|
|
Attenuation [@ 68° F. (20° C)] |
||
|
Frequency(MHz) |
Maximum(dB/100m) |
|
|
10 |
2.03 |
|
|
50 |
4.92 |
|
|
100 |
6.90 |
|
|
200 |
9.80 |
|
|
400 |
15.70 |
|
|
500 |
16.30 |
|
|
600 |
18.60 |
|
|
800 |
23.00 |
|
|
1000 |
26.90 |
|
