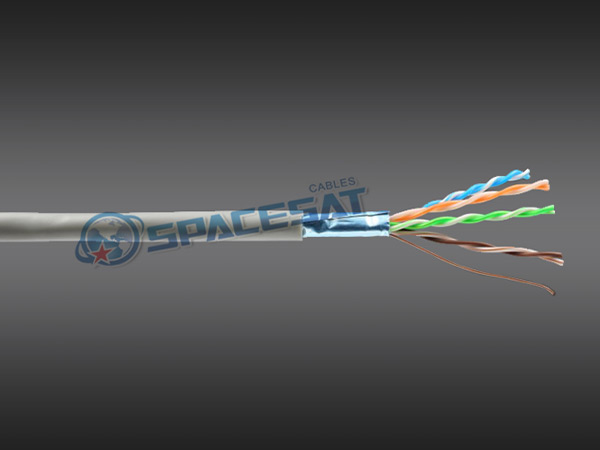

FTP CAT5E PVC/LZSH Jacket-Zhejiang Fanlong Cable Co., Ltd.

Performance parameters (Exceeds TIA/EIA-568-A and Cat5 Standard)
Frequency	Attenuation		NEXT		PSNEXT		ELFEXT		PSELFEXT		RL
(MHz）	(dB/100m)		(dB)		(dB)		(dB)		(dB)		(dB)
	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum	Typical	Maximum
1.00	2.00	1.70	65.30	80.20	62.30	70.80	63.80	89.00	60.80	86.70	20.00	28.50
4.00	4.10	3.50	56.30	70.90	53.30	68.40	51.70	77.20	48.70	73.80	23.00	26.70
8.00	5.80	5.00	51.80	65.90	48.80	62.90	45.70	64.40	42.70	64.10	24.50	26.80
10.00	6.50	5.70	50.30	66.90	47.30	64.40	43.80	59.00	40.80	58.60	25.00	28.80
16.00	8.20	7.30	47.30	61.10	44.30	58.20	39.70	52.80	36.70	52.10	25.00	26.70
20.00	9.30	8.20	45.80	61.80	42.80	57.50	37.70	49.10	34.70	48.30	25.00	28.70
25.00	10.40	9.30	44.30	58.80	41.30	57.00	35.80	46.50	32.80	45.90	24.30	25.90
31.25	11.80	10.50	42.90	57.10	39.90	54.50	33.90	45.40	30.90	44.80	23.60	28.20
62.50	17.10	15.30	38.40	51.50	35.40	47.60	27.80	37.50	24.80	36.90	21.50	29.00
100.00	22.00	19.70	35.30	47.00	32.30	44.40	23.80	39.40	20.80	37.80	20.10	25.30

FTP CAT5E PVC/LZSH Jacket
