Physical Dimensions |
||
|

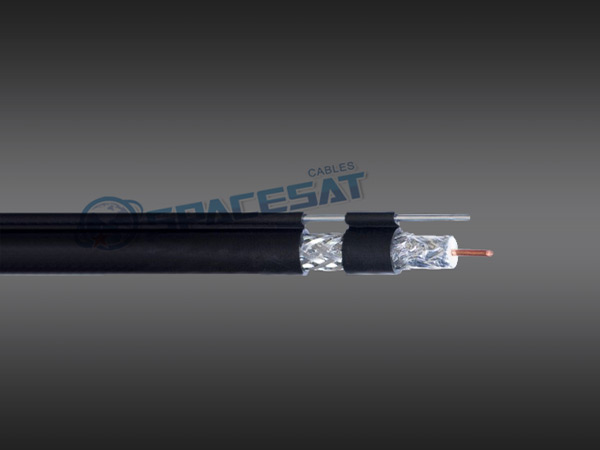

Component |
Standard Shield |
|
|
Conductor |
Material |
CCS/BC |
|
Dia.(mm) |
14AWG |
|
|
Dielectric |
Material |
Foam PE |
|
Dia.(mm) |
7.11±0.01 |
|
|
Shield |
Material |
AL Foil+AL braid |
|
Coverage |
40%-95% |
|
|
Jacket |
Material |
PVC |
|
Dia.(mm) |
10.16±0.01 |
|
|
Electrical Characteristics |
|
|
Impedance(Ω) |
75±3 |
|
Velocity of Propagation |
85% |
|
Capacitance(pF/m) |
53±3 |
|
Voltage withstand) (Volts DC) |
4 |
|
Attenuation [@ 68° F. (20° C)] |
|
|
Frequency(MHz) |
Maximum(dB/100m) |
|
5 |
1.19 |
|
50 |
3.20 |
|
55 |
3.29 |
|
200 |
6.40 |
|
211 |
6.57 |
|
300 |
7.83 |
|
400 |
9.04 |
|
450 |
9.59 |
|
500 |
10.20 |
|
550 |
10.70 |
|
600 |
11.18 |
|
750 |
12.49 |
|
800 |
13.16 |
|
860 |
13.38 |
|
1000 |
14.43 |
|
1350 |
17.1 |
|
1750 |
19.47 |
|
2150 |
21.58 |
