| Physical Dimensions | |||

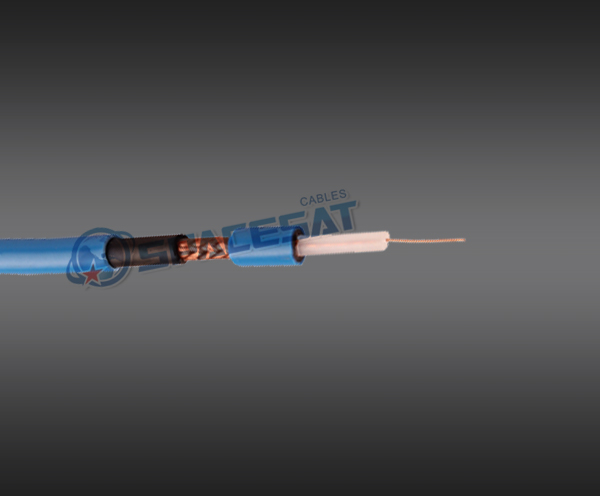

| Component | RG59/U | ||
| Conductor | Material | CCS/BC/TC | |
| Dia. (mm) | 0.584±0.01 | ||
| Dielectric | Material | Solid PE | |
| Dia. (mm) | 3.7010.10 | ||
| Shield | Material | BC/BCCA Braid | |
| Coverage | 95% | ||
| Material | PVC | ||
| Jacket | Dia. (mm) | 6.10±0.10 | |
| 7.80±0.10 | |||
| Electrical Characteristics | |
| Impedance(Q) | 75±3 |
| Velocity of Propagation | 66% |
| Capacitance(pF/m) | 67.3 |
| Nominal Attenuation [@ 68° F. (20。C)] | |
| Frequency(MHz) | Attenuation (dB/100m) |
| 10 | 3.6 |
| 50 | 7.9 |
| 100 | 11.1 |
| 200 | 16.1 |
| 400 | 23.0 |
| 700 | 31.8 |
| 900 | 36.4 |
| 1000 | 39.4 |
